The PowerLink is your new compact and versatile digital power supply from ClarityLB LLC. With its small form factor and robust features, this power supply is designed to meet the needs of engineers, students, and hobbyists alike.
Designed with customization and flexibility in mind, it allows you to tailor it to the specific needs of your custom projects. With a wide range of communication options, you can seamlessly integrate PowerLink into your projects.
Software Tools
The PowerLink features a Graphical User Interface (GUI), APIs for Linux and Windows, and an Apache 2 based Webserver. The APIs enable you to take full control of the PowerLink and create customized applications with ease.

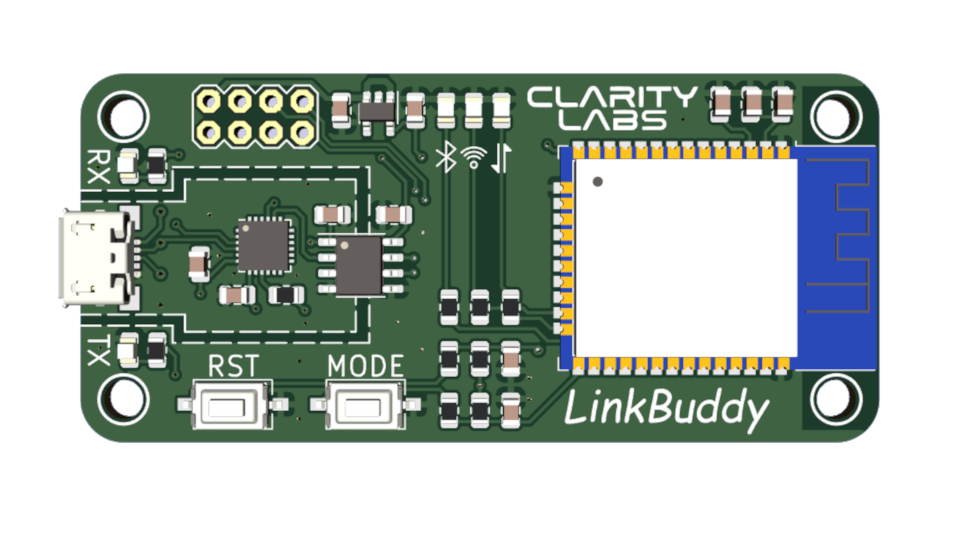

Auxiliary COM Board
The Auxiliary COM Board is an optional accessory compatible with PowerLink and other ClarityLB products. It provides optically isolated USB, WiFi, and Bluetooth connectivity, expanding the communication capabilities of your device.
Specifications
- Output voltage range 0-36V
- Output current range 0-3Amp
- Input voltage range 4.5-36V
- Max output power 96Watts
- Voltage resolution 0.01V
- Current resolution 0.001Amps
- Typical p2p ripple output 50 mV
- Rise time 50ms
- Fall time 100ms (*)
- Dimensions 6.6cm x 3.5cm
Features
- Current limiting
- Over Voltage Protection
- Over Current Protection
- Over Power Protection
- Low Input CutOff
- Reverse Input Protection
- Short-circuit Protection
- Set & Go Mode
- Onboard 3.3V output
- Onboard 5.0V output
